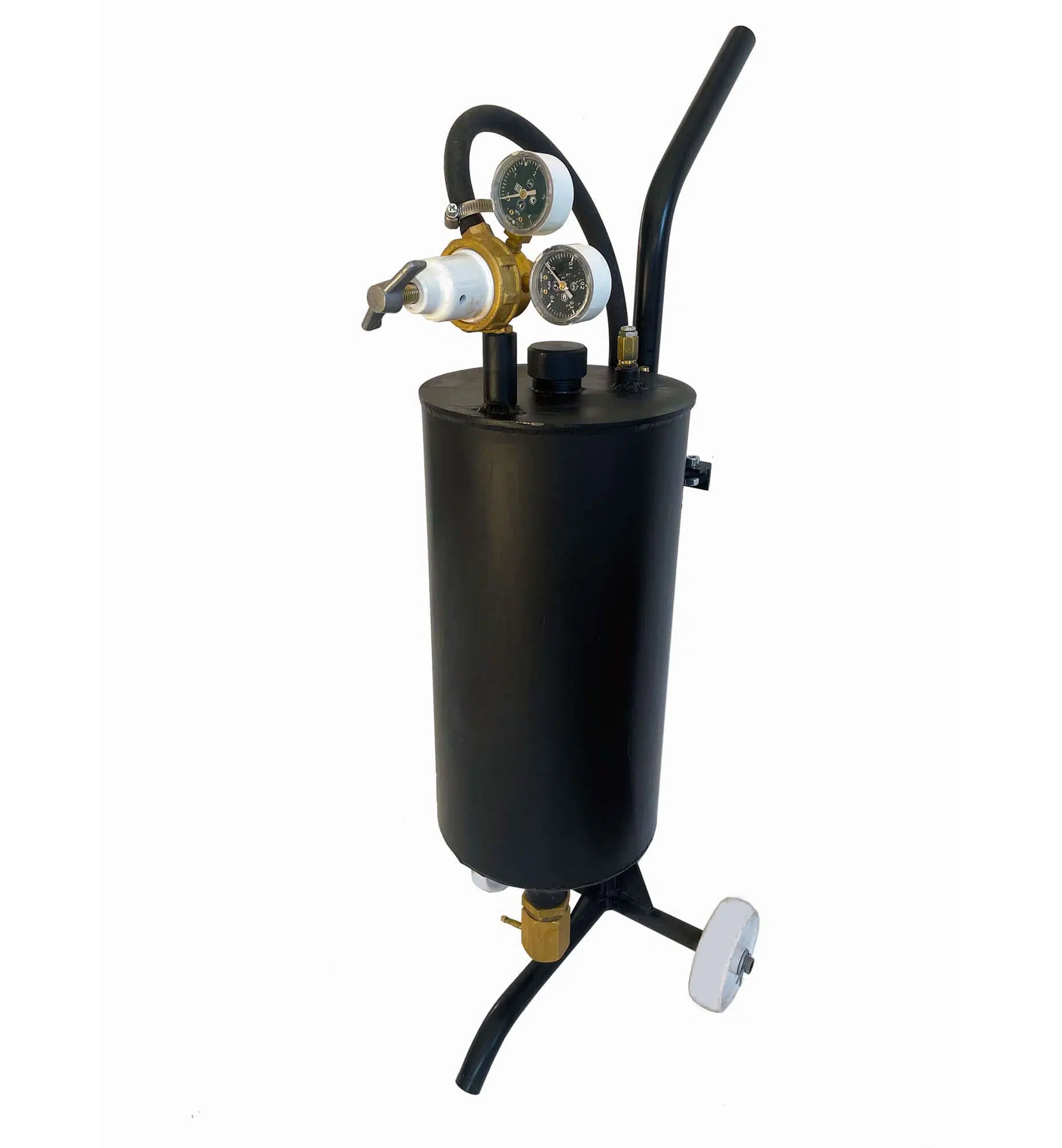

Powder cutting machine PCM-3
PCM-3 is a powder cutting machine for cutting stainless steel, cast iron, non-ferrous metal alloys, and non-metallic materials up to 1500 mm thick.
REQUEST A QUOTE NOW!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
PCM-3 is designed for cutting stainless steel, cast iron, non-ferrous alloys, and non-metallic materials, such as concrete, reinforced concrete, refractory concrete, bricks, and hardened metal. PCM-3 can be used for various cutting tasks typically found in the machine and metallurgical industry, such as cutting blanks from metals and alloys, cutting metal structures into scrap, opening holes for metal tapping, cutting openings in blast furnaces lining, etc.
Specifications
| Cutting thickness | up 1 500 mm |
| Materials suitable for cutting | stainless steel, cast iron, non-ferrous alloys, concrete, reinforced concrete, refractory concrete, brick, hardened metal |
| Powder feeder capacity | 40 l |
| Powder consumption | 3 – 42 kg/hr |
| Carrier gas | nitrogen, dry air |
| Carrier gas consumption | 1.5 – 3.0 m3/hr |
| Oxygen consumption | 19 – 120 m3/hr |
| Weight | 32 kg |
Additional information
| Brand | Plazmamax |
|---|---|
| Model | Flux oxygen cutting machine |
| Effiency | 100% |
| Weight | 50 kg |
| Rated output voltage | 220 |
