Avalanche-1 for high thickness cutting
Avalanche-1 is an oxy-fuel cutting machine for cutting metal up to 1500 mm thick.
REQUEST A QUOTE NOW!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

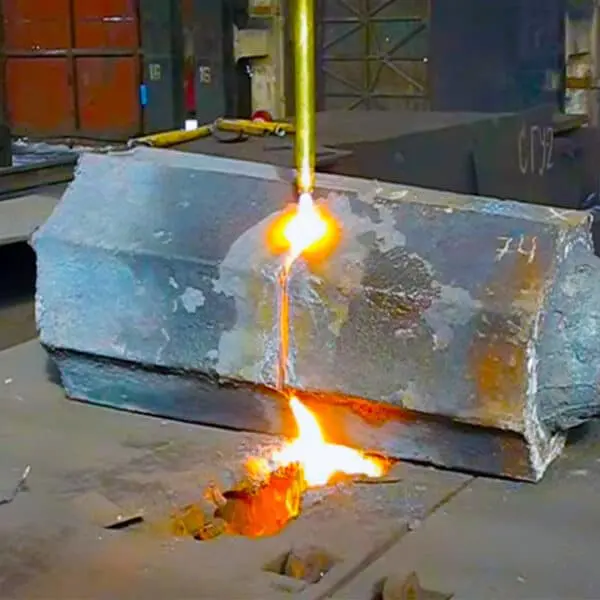

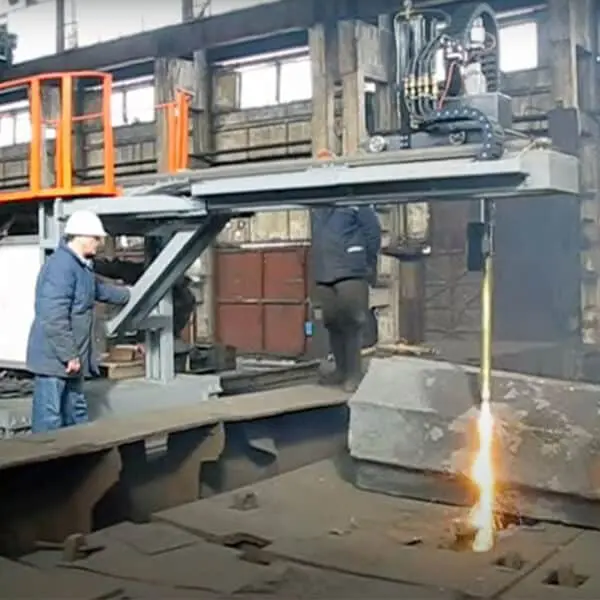

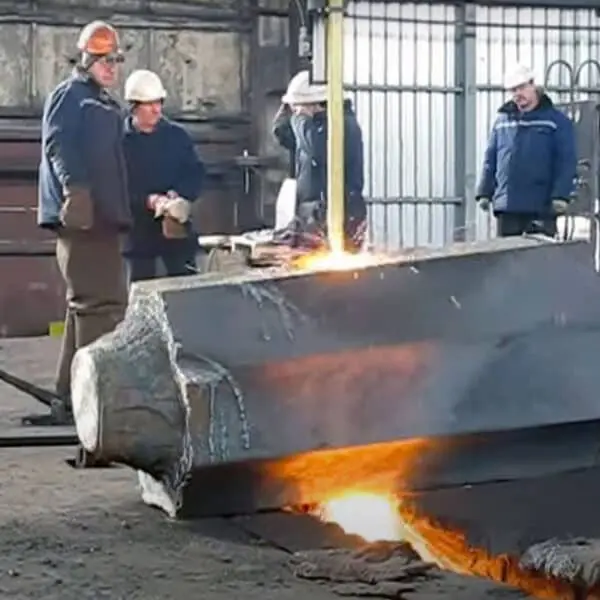

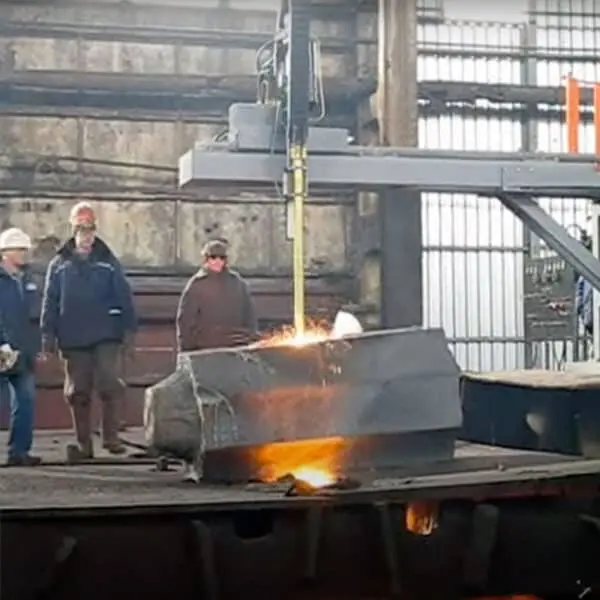

Avalanche is an oxy-fuel cutting machine designed for mechanized straight-line cutting of low-carbon and low-alloy steels up to 1500 mm thick. The water-cooled cutter comes with powder cutting equipment. A two-flame monoblock nozzle design facilitates heating of the cut metal’s upper and lower edges for high thickness cutting.
Specifications
| Supply voltage | single-phase, 230 V, 50 Hz |
| Power consumption | 250 W |
| Number of oxy-fuel cutters | 1 |
| Dimensions | 890 × 850 × 1 050 mm |
| Cutting length | 4 000 mm |
| Cut materials | carbon and alloy steels, cast iron |
| Rail track length | up to 5 000 mm |
| Rail track width | 500 mm |
| Travel speed | 20 – 350 mm/min |
| Cutting thickness | 300 – 1500 mm |
| 1100 mm thick metal cutting speed | 20 – 40 mm/min |
| Gases used | Natural gas, oxygen, nitrogen |
Additional information
| Brand | Plazmamax |
|---|
